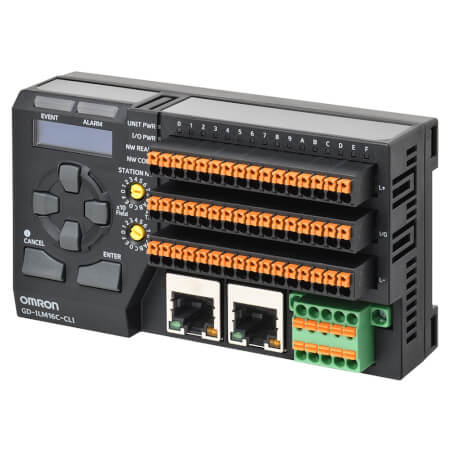

GD Series
IO-Link multi-protocol master unit
Empowering engineers by simplifying sensor communication
- Compact design with 16 input/output ports Configurable ports: IO-Link, PNP or NPN
- Multiprotocol: Ethernet/IP , Modbus/TCP and CC-Link IE
- Alarm and event indicators for quick trouble identification
- OLED display and operation panel to use it without a PC / PLC or HMI
- Supports display in 10 languages
- PC support software tool for efficient device configuration
- Unified device setting menu in unique interface
- Automatic connection to IO-Link devices
- No manual configuration required. Fast settings duplication
- Automated generation of address comment tables for easy PLC communication
- Automatic backup and restore function
Specifications & ordering info
| Product | Type of module | Communication port(s) | I/O connection type | Description | |
|---|---|---|---|---|---|
|
|
IO-Link master | CC-Link IE Field, CC-Link IE TSN | Push-in | IO-Link master unit, CC-Link IE Field, CC-Link IE TSN, Push-in |
|
|
|
IO-Link master | CC-Link IE Field Basic, EtherNet/IP, MODBUS/TCP | Push-in | IO-Link master unit, EthetNet/IP, Modbus/TCP, CC-Link IE Field Basic, Push-in |
|
|
|
IO-Link master | CC-Link IE Field, CC-Link IE TSN | e-Con (plug not included) | IO-Link master unit, CC-Link IE Field, CC-Link IE TSN, e-Con |
|
|
|
IO-Link master | CC-Link IE Field Basic, EtherNet/IP, MODBUS/TCP | e-Con (plug not included) | IO-Link master unit, EthetNet/IP, Modbus/TCP, CC-Link IE Field Basic, e-Con |
|
Need assistance?
We’re here to help! Reach out, and our specialists will assist you in finding the best solution for your business.
Contact Our Experts GD Series
Thank you for submitting your request. We will come back to you as soon as possible.
We are experiencing technical difficulties. Your form submission has not been successful. Please accept our apologies and try again later. Details: [details]
Quotation for GD Series
By completing this form you can request a quotation. Your personal details will be handled confidentially.
Thank you for requesting a quotation. We will provide you with the required information as soon as possible.
We are experiencing technical difficulties. Your form submission has not been successful. Please accept our apologies and try again later. Details: [details]
Features

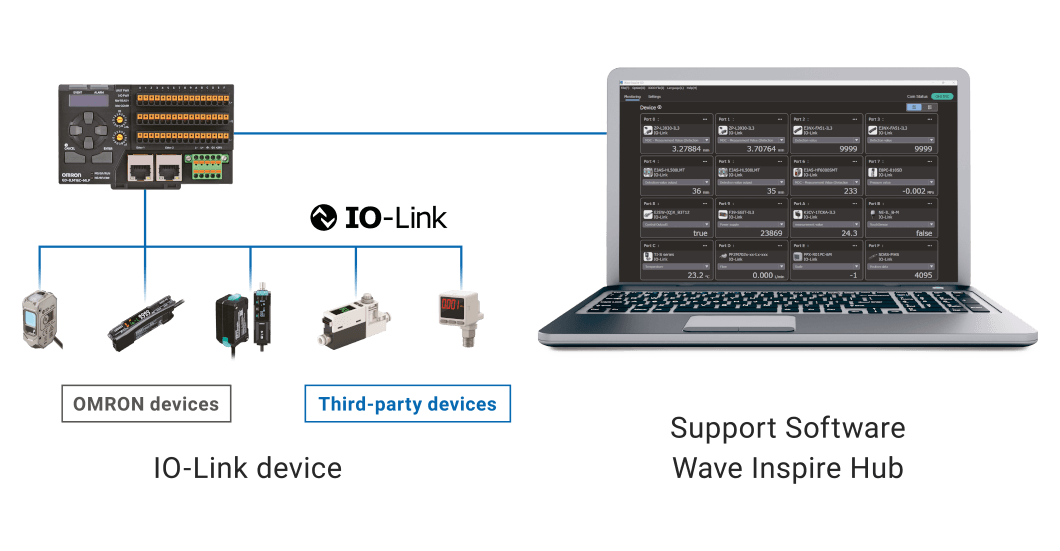

Connect and instantly monitor sensors' status

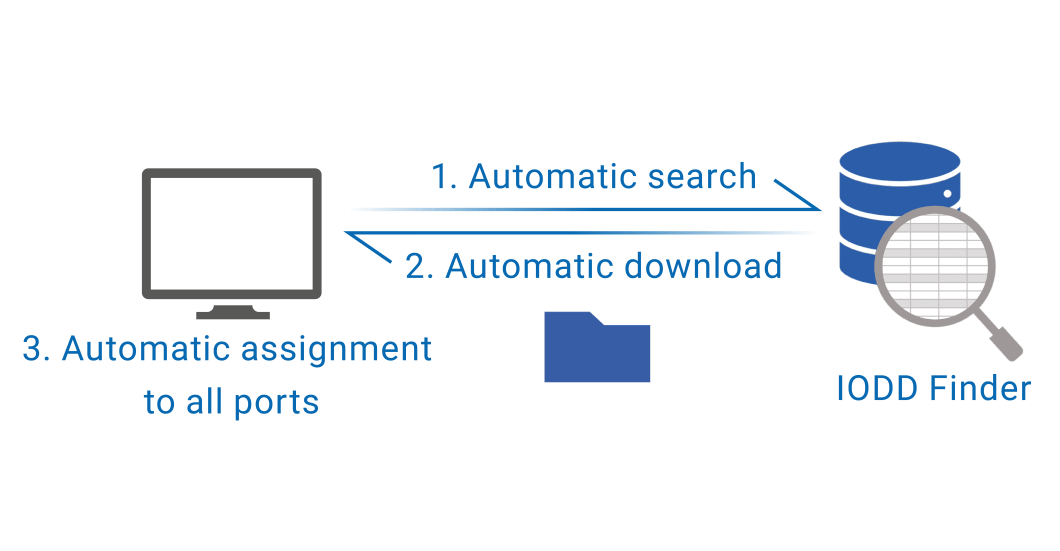

OMRON's unique easy connection function

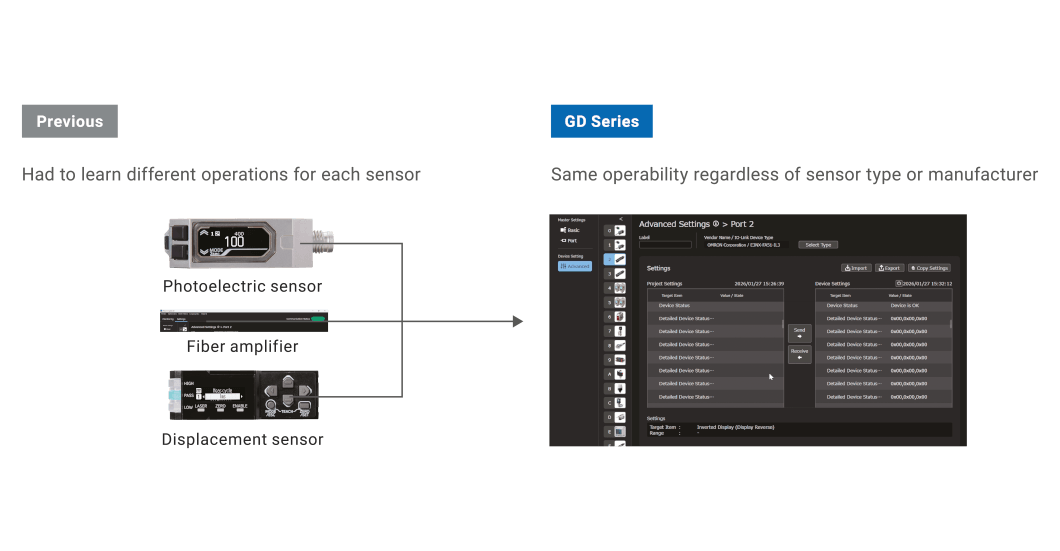

Easy-to-use, unified setting menu
Automated generation of "Address Comment Tables" for easy PLC communication

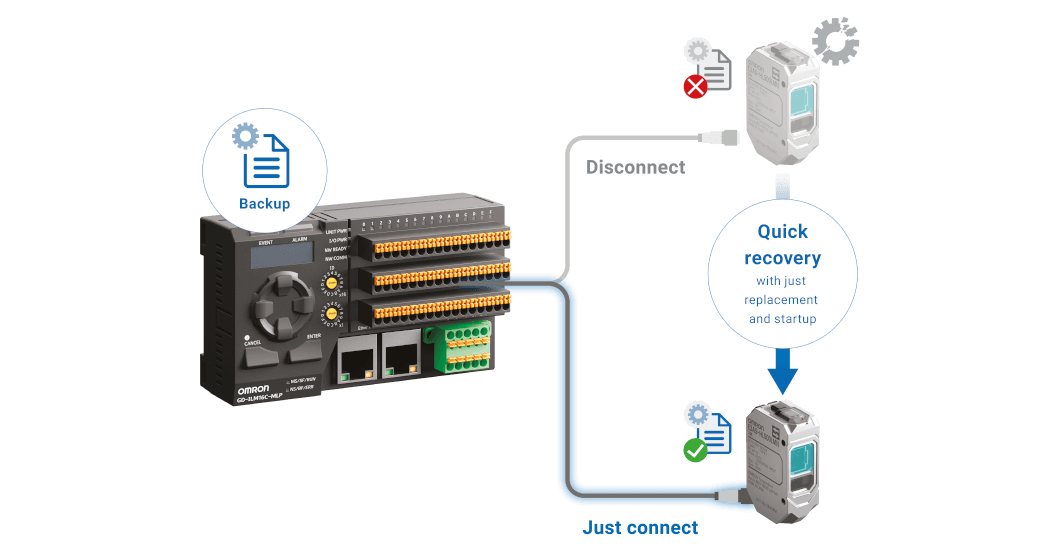

Backup sensor settings to the GD unit for each sensor - quick recovery with just replacement and startup

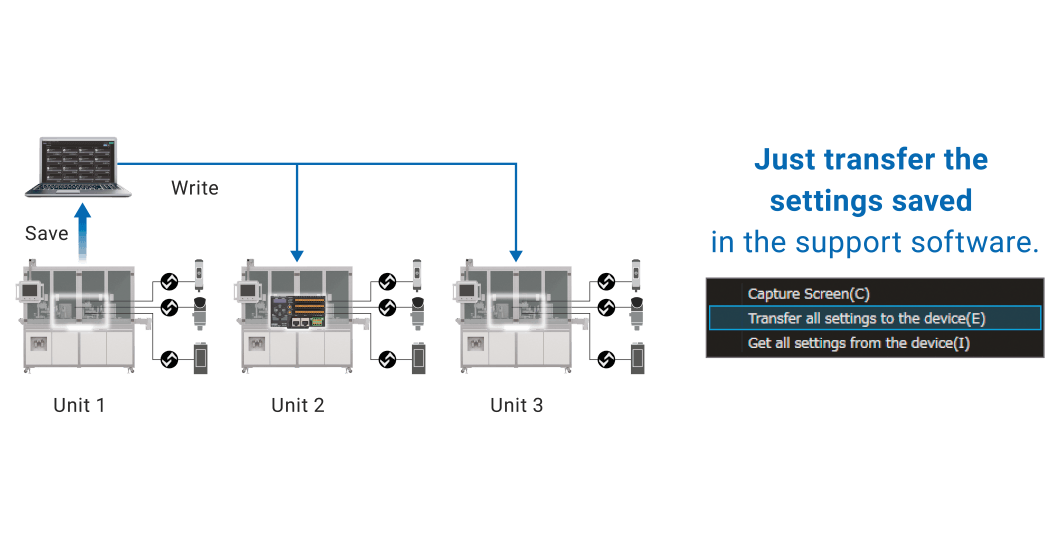

One-click transfer of sensor and master unit settings
Easily identify and restore changed parameters
Videos
-
Introducing OMRON IO Link Master Unit GD Series
Reduce lead times at every stage, for every engineer working on sensors. Centralising diverse sensor information on your PC. IO Link Master Unit GD Series from OMRON.
03:12
Introducing OMRON IO Link Master Unit GD Series
Reduce lead times at every stage, for every engineer working on sensors. Centralising diverse sensor information on your PC. IO Link Master Unit GD Series from OMRON.Related products
-
Proximity Sensor E2E NEXT
-
Advanced direct reflective photoelectric sensors
-
Long-range Time-of-Flight sensor
-
High-performance digital fiber amplifier
-
High-performance color mark sensor
-
Convert analogue signals with high precision and output via IO-Link communication
-
Laser displacement sensor
