We are experiencing technical difficulties. Your form submission has not been successful. Please accept our apologies and try again later. Details: [details]

get direct access

Fill in your details below and get direct access to content on this page

We are experiencing technical difficulties. Your form submission has not been successful. Please accept our apologies and try again later. Details: [details]

Download

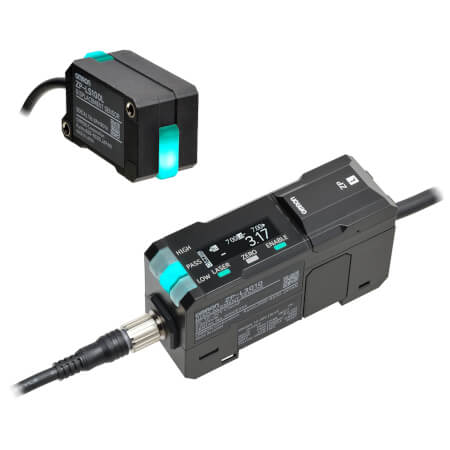

Laser displacement sensor

Accurate stable measurement with optimal usability

High reliable detection for wide range of materials keeping same settings

Spot beam and line beam

Resolution up to 0.5µm

Measurement ranges from 10 to 800 mm

Fast measurement cycle up to 125µs

Angle characteristics of ±85°

Selectable current or voltage analog output

High visible OLED display with intuitive navigation

Large multicolour indicators for easy visualization from any direction

Compact and robust IP67 sensor head

Master and slave amplifier units reducing wiring and simplifying installation

Ethernet/IP communication unit

PC tool for quick configuration and testing without stopping the equipment

Product	Measuring range length	Geometrical resolution	Reference distance	Relative linearity deflection	Spot size	Repeat accuracy	Cable length	Type of light	Laser class	Description
ZP-LS025L 2M	20-30 mm	0.0005 mm	25 mm	0.08 %	50 µm x 1000 µm	0.5 µm	2 m	Laser diode, red light	2	Laser displacement sensor, sensor head, diffuse, 25 mm±5 mm sensing range, 0.5 µm resolution, line-beam, Class 2, 2 m prewired
ZP-LS025S 2M	20-30 mm	0.0006 mm	25 mm	0.125 %	50 µm	0.6 µm	2 m	Laser diode, red light	2	Laser displacement sensor, sensor head, diffuse, 25 mm±5 mm sensing range, 0.6 µm resolution, spot-beam, Class2, 2 m prewired
ZP-LS050L 2M	40-60 mm	0.0007 mm	50 mm	0.04 %	70 µm x 1600 µm	0.7 µm	2 m	Laser diode, red light	2	Laser displacement sensor, sensor head, diffuse, 50 mm±10 mm sensing range, 0.7 µm resolution, line-beam, Class2, 2 m prewired
ZP-LS050S 2M	40-60 mm	0.0008 mm	50 mm	0.1 %	70 µm	0.8 µm	2 m	Laser diode, red light	2	Laser displacement sensor, sensor head, diffuse, 50 mm±10 mm sensing range, 0.8 µm resolution, spot-beam, Class2, 2 m prewired
ZP-LS100L 2M	65-135 mm	0.0012 mm	100 mm	0.065 %	130 µm x 2900 µm	1.2 µm	2 m	Laser diode, red light	2	Laser displacement sensor, sensor head, diffuse, 100 mm±35 mm sensing range, 1.2 µm resolution, line-beam, Class2, 2 m prewired
ZP-LS100S 2M	65-135 mm	0.0013 mm	100 mm	0.085 %	0.12 mm	1.3 µm	2 m	Laser diode, red light	2	Laser displacement sensor, sensor head, diffuse, 100 mm±35 mm sensing range, 1.3 µm resolution, spot-beam, Class2, 2 m prewired
ZP-LS300L 2M	150-450 mm	0.004 mm	300 mm	0.1 %	340 µm x 2800 µm	4 µm	2 m	Laser diode, red light	2	Laser displacement sensor, sensor head, diffuse, 300 mm±150 mm sensing range, 4 µm resolution, line-beam, Class2, 2 m prewired
ZP-LS300S 2M	150-450 mm	0.004 mm	300 mm	0.125 %	310 µm	4 µm	2 m	Laser diode, red light	2	Laser displacement sensor, sensor head, diffuse, 300 mm±150 mm sensing range, 4 µm resolution, spot-beam, Class2, 2 m prewired
ZP-LS600L 2M	200-1000 mm	0.014 mm	600 mm	0.15 %	670 µm x 5800 µm	14 µm	2 m	Laser diode, red light	2	Laser displacement sensor, sensor head, diffuse, 600 mm±400 mm sensing range, 14 µm resolution, line-beam, Class2, 2 m prewired
ZP-LS600S 2M	200-1000 mm	0.014 mm	600 mm	0.2 %	600 µm	14 µm	2 m	Laser diode, red light	2	Laser displacement sensor, sensor head, diffuse, 600 mm±400 mm sensing range, 14 µm resolution, spot-beam, Class2, 2 m prewired

Need assistance?

We’re here to help! Reach out, and our specialists will assist you in finding the best solution for your business.

Get professional advice

Contact Our Experts ZP-L

Please, complete all the fields marked with *. Your personal details will be handled confidentially.

Name

Text error notification

Surname

Text error notification

E-mail

Email error notification

Telephone

Text error notification

Company

Text error notification

Country

Country error notification

Details

Questions or Remarks

Text area error notification

I agree with OMRON Privacy Policy

Checkbox error notification

Subscribe to the newsletter

Checkbox error notification

Thank you for submitting your request. We will come back to you as soon as possible.

We are experiencing technical difficulties. Your form submission has not been successful. Please accept our apologies and try again later. Details: [details]

Download

Get professional advice

Request quotation

Quotation for ZP-L

By completing this form you can request a quotation. Your personal details will be handled confidentially.

Personal details

Product ZP-L

Name

Text error notification

Surname

Text error notification

E-mail

Email error notification

Telephone

Text error notification

Title/Position

Text error notification

Company

Text error notification

Company website

Text error notification

Street

Text error notification

City

Text error notification

Postal Code

Text error notification

Country

Country error notification

Quote details

Type of Request

Select notification error

Quantity

Numeric error notification

Are you buying from Omron or from a distributor/partner?

Select notification error

Tell us about your project

Text area error notification

I agree with OMRON Privacy Policy

Checkbox error notification

Subscribe to the newsletter

Checkbox error notification

Thank you for requesting a quotation. We will provide you with the required information as soon as possible.

We are experiencing technical difficulties. Your form submission has not been successful. Please accept our apologies and try again later. Details: [details]

Download

Request quotation

Features

Premium detection stability and optimal usability

ZP-L Series products are equipped with a carefully designed user interface, as well as detection accuracy. They’re packed with creative features that allow engineers to cut back on time and effort unknowingly spent when working with displacement sensors.

Different materials can be detected with the same configuration

ZP-L with wide dynamic range and OMRON’s unique sensing algorithms, can stably detect with same configuration a wide range of workpieces, from black polished, which reflect little light, to metal workpieces, which reflect a lot of light.

Reliable measurements in motion

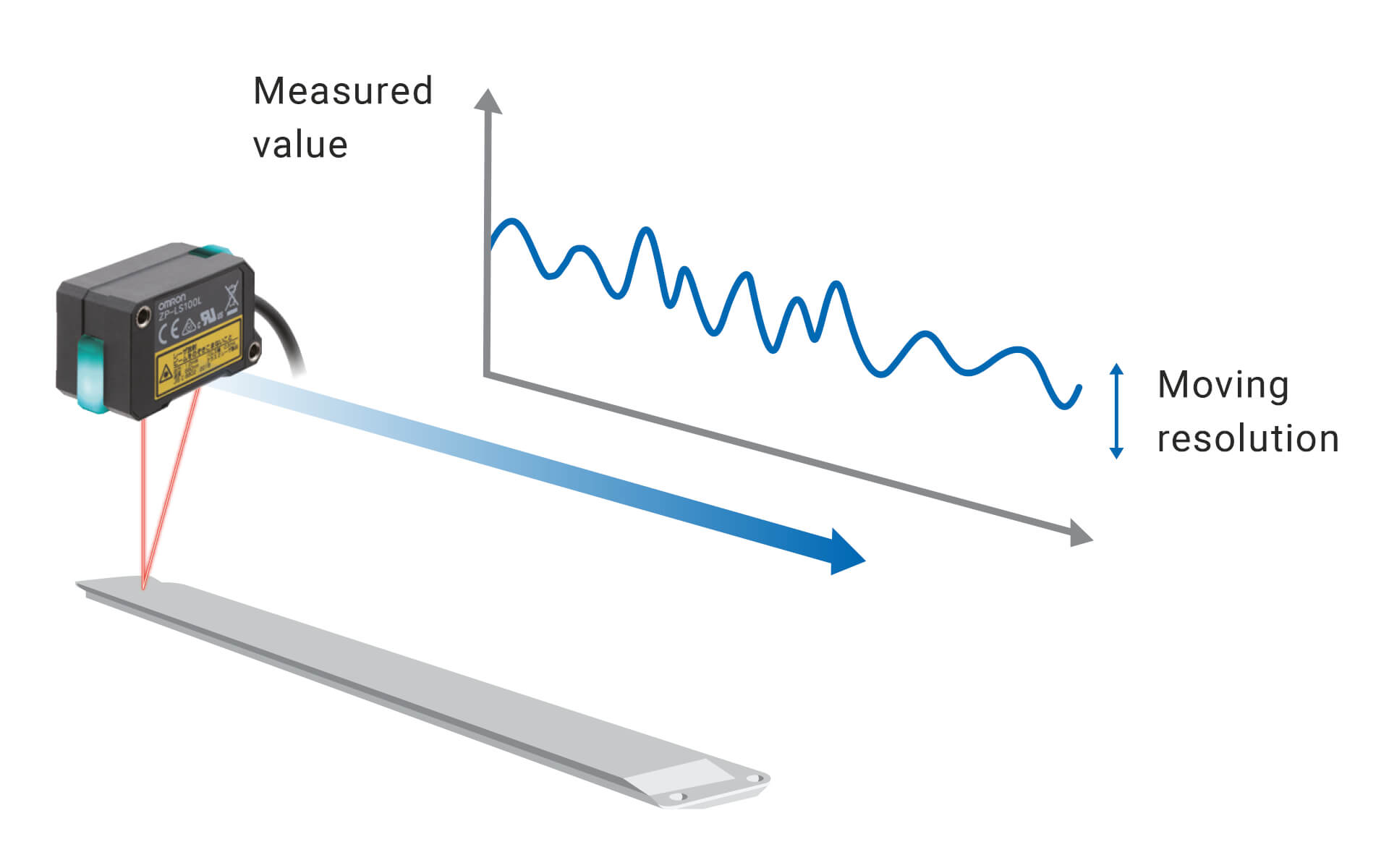

When measuring moving workpieces, laser displacement sensors are impacted by workpiece surface conditions, and variations in measurement values may exceed the resolution set forth in their specifications. ZP-L provides reliable measurement even in motion.

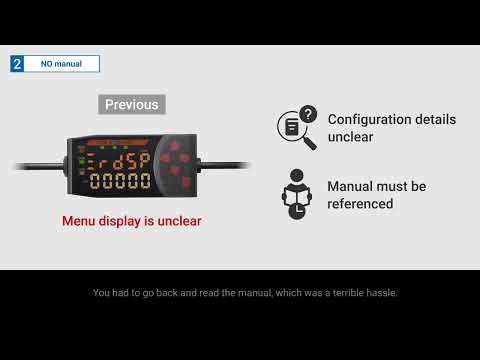

Intuitive user interface requiring no manuals

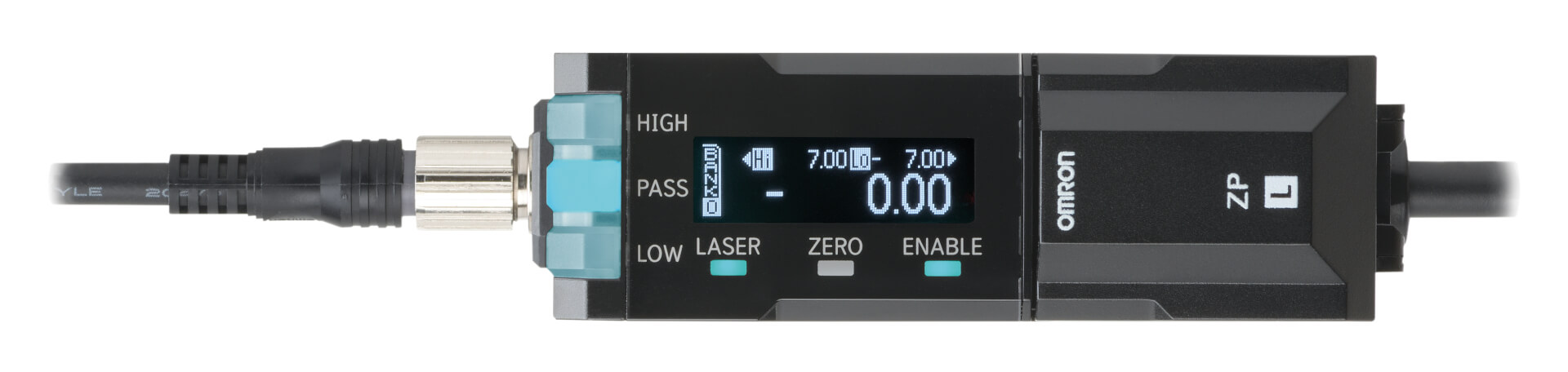

ZP-L amplifier units are equipped with OLED displays providing clear visualization, which allows easy-to-understand menu displays that saves the time of searching through manuals.

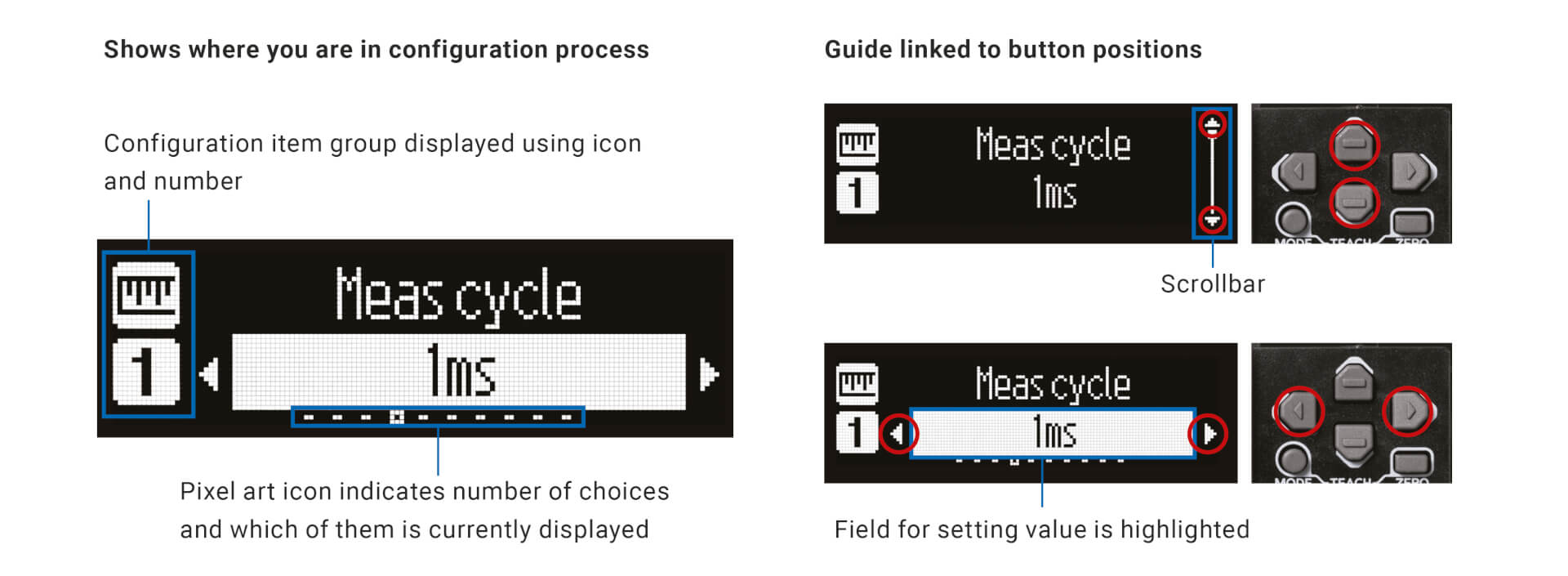

The configuration screen is designed to prevent users from losing track of where they are in their configuration process. Its layout works in coordination with button operation, allows for intuitive operation.

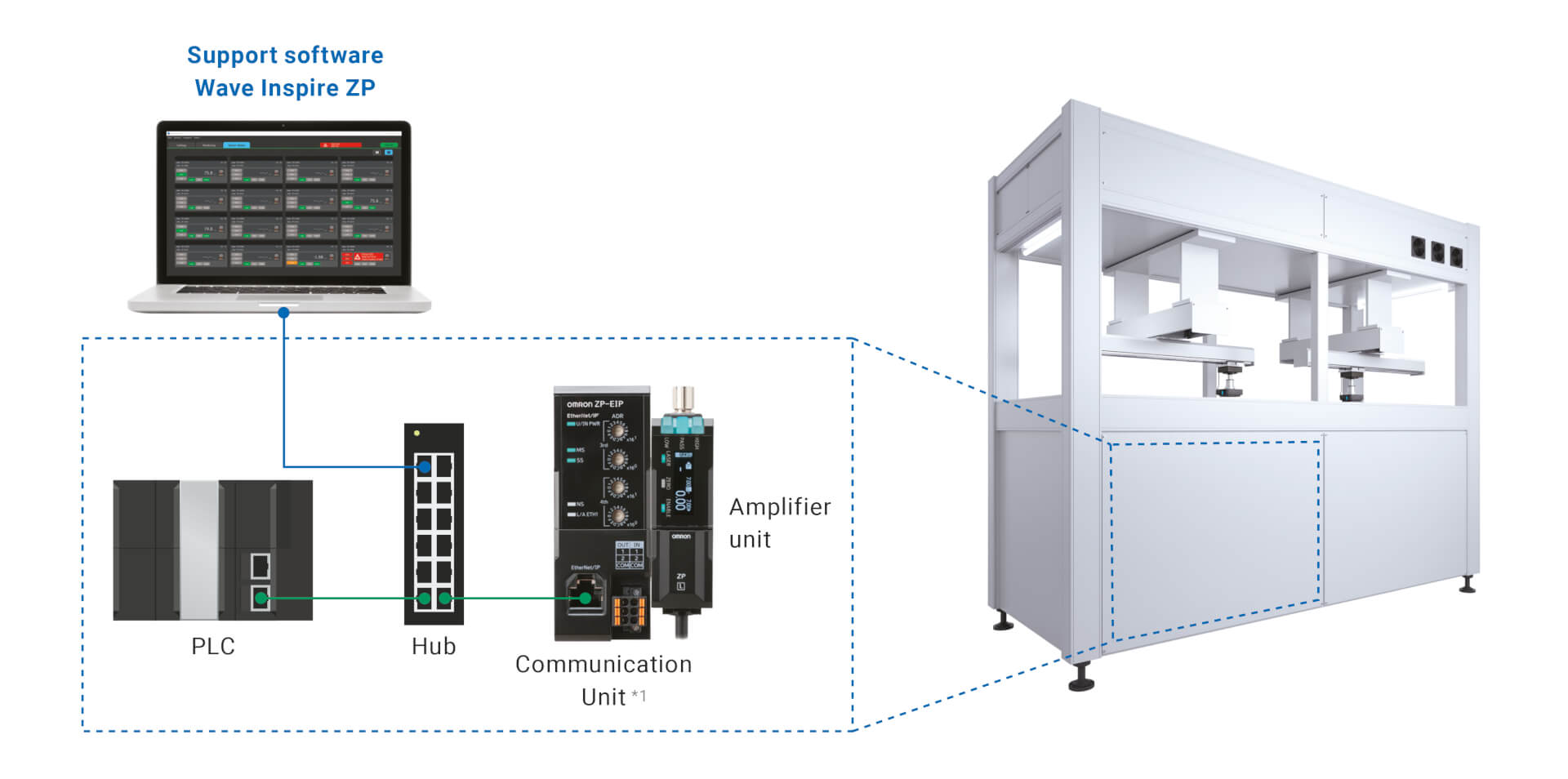

PC support software

ZP-L Wave Inspire software allow users to check sensor conditions, measurement margins, obtain trace logs, and save and replicate settings without impacting the equipment’s control operations.
