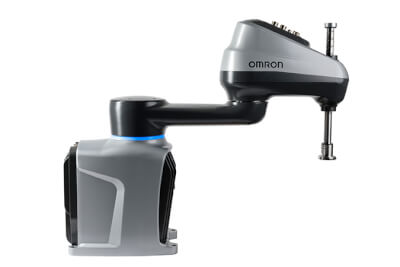

i4H
Gain more out of production with a higher payload and faster cycle time
Achieve more by seamlessly integrating the robust i4H into your production line today. With an updated robust design, the i4H can achieve a more meaningful and efficient production for your factory needs.
- 15 kg payload capacity
- 650 mm, 750 mm, and 850mm reach options with floor, wall and ceiling mounting options
- Robot Integrated Controller NJ-R with EtherCAT connectivity
- Stand Alone Ethernet models
- Options: IP65, Food Grade, ESD and Clean Room
- Fast cycle time with an unprecedented range of movement and repeatability
- Advanced and robust industrial design
- Lowest total cost of ownership
- Optimize your line with maximum uptime by means of interactive maintenance alarms and an RGB dome light
Accessories
Ordering information
| Apperance | Type | Name/Specifications | Order code |
|---|---|---|---|
 |
Robot Integrated Controller | 16 motion axis, up to 8 robots control | NJ501-R300 |
| 32 motion axis, up to 8 robots control | NJ501-R400 | ||
| 64 motion axis, up to 8 robots control | NJ501-R500 | ||
 |
Pendant | T20 Pendant with 10 m Cable | 10046-010 |
| T20 Pendant-Jumper Plug | 10048-000 | ||
| T20 Pendant Wall Bracket | 10079-000 | ||
| T20 Adapter Cable, 3 m | 10051-003 | ||
 |
Vision Controller | IPC Application Controller | AC1-152000 |
 |
Camera | GigE PoE, 1602 x 1202 pixels, 60 fps, Monochrome, CMOS (1/1.8-inch equivalent), camera cables included (10 m) | 24114-250 |
| GigE PoE, 1602 x 1202 pixels, 60 fps, Color, CMOS (1/1.8-inch equivalent), camera cables included (10 m) | 24114-251 | ||
| GigE PoE, 2048 x 2048 pixels, 25 fps, Monochrome, CMOS (1-inch equivalent), camera cables included (10 m) | 24114-300 | ||
| GigE PoE, 2048 x 2048 pixels, 25 fps, Color, CMOS (1-inch equivalent), camera cables included (10 m) | 24114-301 | ||
| Belt Encoder (Conveyor-Tracking) |
Encoder Kit IP65 | 09742-001 | |
| Y-Adapter Cable, 3 m | 09443-000 | ||
| Encoder Extension Cable, 5 m | 09446-050 | ||
| SCEX-BELT,Y-Adapter Cable, 0.5 m | 09550-000 | ||
| XBELTIO Cable, 0.6 m | 13463-000 | ||
| Additional I/O Options | IO Blox (connect to robot), 8 inputs/8 outputs, cables included (0.3 m) | 90356-30200 | |
| IO Block (connect to previous IO Blox), 8 inputs/8 outputs, cables included (0.3 m) | 90356-30100 | ||
| IO Blox-to-robot Cable, 3 m | 04677-030 | ||
| IO Blox-to-IO Blox Cable, 3 m | 04679-030 | ||
| IO Blox-to-IO Blox Cable, 0.3 m | 04679-003 | ||
| XIO Termination Block, 12 inputs/8 outputs, cables included (1.8 m) | 90356-40100 | ||
| XDIO Termination Block, 50 pin, cables included (2 m) | 09747-000 | ||
 |
Front Panel | Front Panel with 3 m cable | 90356-10358 |
| Front Panel Cable, 3 m | 10356-10500 | ||
| Power Supply/Cable | AC Power Cable, 5 m | 04118-000 | |
| 24 VDC Power Cable, 5 m | 04120-000 | ||
| 24 VDC, 6.5 A, 150 W (Front Mounting), Power Supply | S8FS-G15024C
2
Refer to the Switch Mode Power Supply Datasheet
(Cat.No.T207) for details. |
||
| 24 VDC, 6.5 A, 150 W (DIN-Rail Mounting), Power Supply | S8FS-G15024CD
2
Refer to the Switch Mode Power Supply Datasheet
(Cat.No.T207) for details. |
||
| 1394 Cable, 4.5 m | 13632-045 | ||
| eAIB XSYSTEM Cable Assembly, 1.8 m | 13323-000 | ||
| DB9 Splitter, 0.3 m | 00411-000 | ||
| eAIB XSYS Cable, 4.5 m | 11585-000 | ||
| Ethernet Cable | XS6W-6LSZH8SS
2
Refer
to the Industrial Ethernet Cables Catalog (Cat.No.G019) for details. |
||
| Industrial Switching Hubs | W4S1-05C
2
Refer
to the Industrial Switching Hubs Catalog (Cat.No.V227) for details. |
||
| Solenoid Valve Kit | eCobra robots (600, 800, 800 Inverted) | 02853-000 | |
| Cable Seal Kit | Hornet 565 IP65/67, Quattro 650HS IP65/67, Quattro 800HS IP65/67 | 08765-000 | |
| Quattro 650HS Standard, Quattro 800HS Standard | 09564-000 | ||
| eCobra 800 IP65/67 | 04813-000 | ||
| eCobra 800 Inverted IP65 | 09073-000 | ||
 |
ACE License | Automation Control Environment (for ACE 4.x) | Please download it from following URL: http://www.adept.com/Robots-Tool |
| ACE PackXpert (for ACE 4.x) | 20409-000 | ||
| ACE Sight Vision Software (for ACE 4.x) | 20410-000 | ||
| ACE PackXpert with ACE Sight Vision (for ACE 4.x) This license contains an ACE PackXpert license and an ACE Sight license. |
20433-000 | ||
 |
Related Products | Machine Automation Controller NX/NY/NJ Series | NX/NY/NJ
2
Refer to the Sysmac Catalog (Cat.No.P072)
for details. |
| Automation Software Sysmac Studio | SYSMAC-SE2
2
Refer to the Sysmac Catalog (Cat.No.P072)
for details. |
||
| Collection of software functional componentsSysmac LibraryAdept Robot Control Library | SYSMAC-XR009
2
Refer
to the Sysmac Library Catalog (Cat.No.P106) for details. |
||
Note:
Contact your Omron representative for lenses, lights, and licenses.
Sysmac Library
The Sysmac Library is a collection of software functional components that can be used in programs
for the NX/NY/NJ Machine Automation Controllers.Please download it from following URL and install to Sysmac Studio Automation Software.http://www.ia.omron.com/sysmac_library/The Adept Robot Control Library allows you to control Delta, Articulated and SCARA robots manufactured
by Omron Adept Technologies Inc. from the NX/NY/NJ Machine Automation Controller by using the same
instructions and programming methods.
How can we help you?
If you have a question or would like to ask for a quote, please contact us or send a request.
Request
Contact us
Contact Our Experts i4H
Thank you for submitting your request. We will come back to you as soon as possible.
We are experiencing technical difficulties. Your form submission has not been successful. Please accept our apologies and try again later. Details: [details]
DownloadRequest
Request
Request quotation
Request quotation
Quotation for i4H
By completing this form you can request a quotation. Your personal details will be handled confidentially.
Thank you for requesting a quotation. We will provide you with the required information as soon as possible.
We are experiencing technical difficulties. Your form submission has not been successful. Please accept our apologies and try again later. Details: [details]
DownloadRequest quotation
Request quotation
Higher payloads up to 15kg
High-speed cycle times
Available in 650, 750, 850mm reach lengths
IP65 Rating
NSF-H1 Food Grade
Clean Room
ESD Safe
-
OMRON’s i4H SCARA Robot Series
Introducing the i4H, OMRON’s newest SCARA robot Achieve more by seamlessly integrating the robust i4H into your production line today. Unique features enable OMRON’s latest SCARA line to meet today’s demands of mass customization. It also allows manufacturers to produce high mixes of products at low volume which provide a wider array of goods to people. Key features −15 kg payload capacity. − 650, 750, 850mm reach options − Standard & Long Quill lengths − Visual display on base − Health lighting indicators For more information about the OMRON’s i4H SCARA Robot visit our website:
02:00
OMRON’s i4H SCARA Robot Series
Introducing the i4H, OMRON’s newest SCARA robot Achieve more by seamlessly integrating the robust i4H into your production line today. Unique features enable OMRON’s latest SCARA line to meet today’s demands of mass customization. It also allows manufacturers to produce high mixes of products at low volume which provide a wider array of goods to people. Key features −15 kg payload capacity. − 650, 750, 850mm reach options − Standard & Long Quill lengths − Visual display on base − Health lighting indicators For more information about the OMRON’s i4H SCARA Robot visit our website:
Experience our new i4H line of SCARA robots
In any manufacturing environment today, the key emphasis is on how you can safely harness the power and precision of robots along with the problem-solving ability of humans to achieve greater productivity.
The i4H SCARA robot provides a heavier payload and performance compared to its predecessor. Customers can complete machine loading, palletizing and mechanical assembly in industries such as food & beverage and automotive. Maximize uptime with a first ever on-board display and health lighting indicator.
Models
i4H-650
- Reach: 650mm
- Max. payload: 15 kg
- Quill length: 210 / 410mm
- IP Class: Standard IP20
- Blended Burst cycle: 0.37
- Repeatability (mm): XY ±0.015 / Z ±0.01 / Theta ±0.005
- Mount: The i4H can be mounted to the floor, wall, or inverted
- Different models for EtherCAT and/or Ethernet connectivity
- Options: IP65, Food Grade, ESD and Clean Room
i4H-750
- Reach: 750mm
- Max. payload: 15 kg
- Quill length: 210 / 410mm
- IP Class: Standard IP20
- Blended Burst cycle: 0.37
- Repeatability (mm): XY ±0.025 / Z ±0.01 / Theta ±0.005
- Mount: The i4H can be mounted to the floor, wall, or inverted
- Different models for EtherCAT and/or Ethernet connectivity
- Options: IP65, Food Grade, ESD and Clean Room
i4H-850
- Reach: 850mm
- Max. payload: 15 kg
- Quill length: 210 / 410mm
- IP Class: Standard IP20
- Blended Burst cycle: 0.37
- Repeatability (mm): XY ±0.025 / Z ±0.01 / Theta ±0.005
- Mount: The i4H can be mounted to the floor, wall, or inverted
- Different models for EtherCAT and/or Ethernet connectivity
- Options: IP65, Food Grade, ESD and Clean Room
Feature
Heavier payload
The i4H comes in at a hefty payload capacity of 15 kg, which is an ideal solution for industries such as food & beverage, consumer, and auto. The i4H is great for palletizing, pick &place, and machine loading/unloading applications.
Maximize Uptime
With the new i4H SCARA Robots we have added a few first ever features that will help reduce downtime, prevent accidents, and make maintenance an easier process.
- First ever on-board display for troubleshooting, maintenance and visual inspections
- World’s first robot health lighting indicator
RGB dome light for better diagnoses
The i4H robot diagnoses problems faster with its unique and highly visible multi-colored LED light dome which provides predictive maintenance and convenient indication of the robot status.
- Off
- Solid White
- Solid Blue
- Blinking Blue
- Blinking Green
- Solid Red
- Blinking Red
Industrial Connectivity
Industrial Connectivity
The i4H can easily connect to networks and PLCs thanks to built-in industrial protocols. Numerous communication methods are supported by the i4H.
ESD Certification
The i4H ESD models are intended for use in production environments where ESD is required. The third-party certifications available for these models show compliance with the ESD standards IEC 61340-5-1:2016 and ANSI/ESD S20.20:2021.
Automate your production line with i4H robots
Seamless integration. Getting started with the i4H has never been easier
Easily program the i4H robot alongside the rest of OMRON’s devices (vision, motion, IO, safety) with our single programming software, Sysmac. Additionally, Sysmac software is able to simulate your entire production line which reduces troubleshooting time and allows you to achieve very high levels of synchronization between multiple robots or robots and servos, all connected through EtherCAT.
Special Environments
Specifications & ordering info
| Product | Payload | Reach | Z-Stroke | Robot controller | Degree of protection (IP) | Food grade grease | ESD protection | Suitable for pedestal/floor mounting | Suitable for wall mounting | Suitable for ceiling mounting | EtherCAT communication | PROFINET communication | TCP/IP communication | RS232 communication | Vision | Conveyor tracking | PackXpert | Number of I/O-Blox | Description | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
15 kg | 650 mm | 210 mm | Not required | IP20 | No | No | Yes | Yes | No | No | Yes | Yes | Yes | Yes | Yes | Yes | 4 | i4-650H, 15 kg payload, 650 mm reach, 4 axis, 210 mm Zaxis, Table Mount, IP20, iCS-ENET |
|
|
|
15 kg | 650 mm | 410 mm | Not required | IP20 | No | No | Yes | Yes | No | No | Yes | Yes | Yes | Yes | Yes | Yes | 4 | i4-650H, 15 kg payload, 650 mm reach, 4 axis, 410 mm Zaxis, Table Mount, IP20, iCS-ENET |
|
|
|
15 kg | 650 mm | 210 mm | Not required | IP20 | No | Yes | Yes | Yes | No | No | Yes | Yes | Yes | Yes | Yes | Yes | 4 | i4-650H, 15 kg payload, 650 mm reach, 4 axis, 210 mm Zaxis, Table Mount, CR/ESD, iCS-ENET |
|
|
|
15 kg | 650 mm | 410 mm | Not required | IP20 | No | Yes | Yes | Yes | No | No | Yes | Yes | Yes | Yes | Yes | Yes | 4 | i4-650H, 15 kg payload, 650 mm reach, 4 axis, 410 mm Zaxis, Table Mount, CR/ESD, iCS-ENET |
|
|
|
15 kg | 650 mm | 210 mm | Not required | IP65 | Yes | No | Yes | Yes | No | No | Yes | Yes | Yes | Yes | Yes | Yes | 4 | i4-650H, 15 kg payload, 650 mm reach, 4 axis, 210 mm Zaxis, Table Mount, IP65+H1 Grease, iCS-ENET |
|
|
|
15 kg | 650 mm | 410 mm | Not required | IP65 | Yes | No | Yes | Yes | No | No | Yes | Yes | Yes | Yes | Yes | Yes | 4 | i4-650H, 15 kg payload, 650 mm reach, 4 axis, 410 mm Zaxis, Table Mount, IP65+H1 Grease, iCS-ENET |
|
|
|
15 kg | 650 mm | 210 mm | Not required | IP20 | Yes | No | Yes | Yes | No | No | Yes | Yes | Yes | Yes | Yes | Yes | 4 | i4-650H, 15 kg payload, 650 mm reach, 4 axis, 210 mm Zaxis, Table Mount, IP20+H1 Grease, iCS-ENET |
|
|
|
15 kg | 650 mm | 410 mm | Not required | IP20 | Yes | No | Yes | Yes | No | No | Yes | Yes | Yes | Yes | Yes | Yes | 4 | i4-650H, 15 kg payload, 650 mm reach, 4 axis, 410 mm Zaxis, Table Mount, IP20+H1 Grease, iCS-ENET |
|
|
|
15 kg | 650 mm | 210 mm | Not required | IP20 | No | No | No | No | Yes | No | Yes | Yes | Yes | Yes | Yes | Yes | 4 | i4-650H, 15 kg payload, 650 mm reach, 4 axis, 210 mm Zaxis, Inverted Mount, IP20, iCS-ENET |
|
|
|
15 kg | 650 mm | 410 mm | Not required | IP20 | No | No | No | No | Yes | No | Yes | Yes | Yes | Yes | Yes | Yes | 4 | i4-650H, 15 kg payload, 650 mm reach, 4 axis, 410 mm Zaxis, Inverted Mount, IP20, iCS-ENET |
|
|
|
15 kg | 650 mm | 210 mm | Not required | IP20 | No | Yes | No | No | Yes | No | Yes | Yes | Yes | Yes | Yes | Yes | 4 | i4-650H, 15 kg payload, 650 mm reach, 4 axis, 210 mm Zaxis, Inverted Mount, CR/ESD, iCS-ENET |
|
|
|
15 kg | 650 mm | 410 mm | Not required | IP20 | No | Yes | No | No | Yes | No | Yes | Yes | Yes | Yes | Yes | Yes | 4 | i4-650H, 15 kg payload, 650 mm reach, 4 axis, 410 mm Zaxis, Inverted Mount, CR/ESD, iCS-ENET |
|
|
|
15 kg | 650 mm | 210 mm | Not required | IP65 | Yes | No | No | No | Yes | No | Yes | Yes | Yes | Yes | Yes | Yes | 4 | i4-650H, 15 kg payload, 650 mm reach, 4 axis, 210 mm Zaxis, Inverted Mount, IP65+H1 Grease, iCS-ENET |
|
|
|
15 kg | 650 mm | 410 mm | Not required | IP65 | Yes | No | No | No | Yes | No | Yes | Yes | Yes | Yes | Yes | Yes | 4 | i4-650H, 15 kg payload, 650 mm reach, 4 axis, 410 mm Zaxis, Inverted Mount, IP65+H1 Grease, iCS-ENET |
|
|
|
15 kg | 650 mm | 210 mm | Not required | IP20 | Yes | No | No | No | Yes | No | Yes | Yes | Yes | Yes | Yes | Yes | 4 | i4-650H, 15 kg payload, 650 mm reach, 4 axis, 210 mm Zaxis, Inverted Mount, IP20+H1 Grease, iCS-ENET |
|
|
|
15 kg | 650 mm | 410 mm | Not required | IP20 | Yes | No | No | No | Yes | No | Yes | Yes | Yes | Yes | Yes | Yes | 4 | i4-650H, 15 kg payload, 650 mm reach, 4 axis, 410 mm Zaxis, Inverted Mount, IP20+H1 Grease, iCS-ENET |
|
|
|
15 kg | 750 mm | 210 mm | Not required | IP20 | No | No | Yes | Yes | No | No | Yes | Yes | Yes | Yes | Yes | Yes | 4 | i4-750H, 15 kg payload, 750 mm reach, 4 axis, 210 mm Zaxis, Table Mount, IP20, iCS-ENET |
|
|
|
15 kg | 750 mm | 410 mm | Not required | IP20 | No | No | Yes | Yes | No | No | Yes | Yes | Yes | Yes | Yes | Yes | 4 | i4-750H, 15 kg payload, 750 mm reach, 4 axis, 410 mm Zaxis, Table Mount, IP20, iCS-ENET |
|
|
|
15 kg | 750 mm | 210 mm | Not required | IP20 | No | Yes | Yes | Yes | No | No | Yes | Yes | Yes | Yes | Yes | Yes | 4 | i4-750H, 15 kg payload, 750 mm reach, 4 axis, 210 mm Zaxis, Table Mount, CR/ESD, iCS-ENET |
|
|
|
15 kg | 750 mm | 410 mm | Not required | IP20 | No | Yes | Yes | Yes | No | No | Yes | Yes | Yes | Yes | Yes | Yes | 4 | i4-750H, 15 kg payload, 750 mm reach, 4 axis, 410 mm Zaxis, Table Mount, CR/ESD, iCS-ENET |
|
No results found. Please expand your filter selection.
Reset all filters
Robotic Services
Up-time is a critical factor for integrated robotic solutions. Our team of robotic service specialists are dedicated to make sure that you can keep your installation healthy through the whole service life.
Control Units
Robot Control
Robot Integrated Controller
The new Robotics Integrated Platform is the next revolutionary step in the SYSMAC ecosystem that seamlessly integrate the full ORT Fixed Robotics product line. The NJ-R machine controller with new Robot Integrated CPU supports up to 8 robots as well as independent motion axis control.
Main Features
- Total Integration (Control): Unified control automation + robotics
- Process Integration (Faster Time-to-market): Applications can be developed from design through commissioning, operation, and continuous improvement
- Supply Chain Integration (Flexibility): Users can easily reprogram (PLC and robots), modify, or scale production, providing flexibility to adapt to fluctuating demands
- Intel Atom processor, 20 MB user program capacity, 2GB SD card
- Runs Real-time Operating System and eV+3
- EtherCAT and Ethernet/IP communication
- Control Cycle: 0.5, 1, 2, 4 ms (Min 2 ms with ORT robots)
- SQL DB Functionality
- Can control NJ Robotics units (Deltas Codian & Yamaha, custom kinematics)
- Supports existing NJ accessories (Power supply, CJ-IO, cables)
- All non-robot features are consistent with existing NJ models
Learn more about the Robotics Integrated Controller
Stand-Alone Solution
Apart of EtherCAT models to be used with the Robot Integrated Controller NJ-R for multi robot applications, we also have stand-alone Ethernet models.
- Stand Alone Pro-Version!
- No external controller is needed
- Communication capabilities same than legacy eCobra models.
- Mechanical adapter for eCobra models migration.
- On-board display for troubleshooting, maintenance and visual inspections
T20 Pendant
The T20 manual control pendant provides an ergonomic and durable package which users can manually teach the robot system. All gripping and holding positions enable comfortable and fatigue-free operation. The T20 pendant is compatible with any robot that is controlled by the SmartController EX motion controller.
Product Details- Supports
- Enable/disable power
- Jog the robot in different modes (joint, world, tool, frame)
- E-Stop button and 3-position enable switch
- Colorful and high resolution User Interface
- Teach locations
- Display robot position, digital I/O, and system status
- Display IP address of controller
- Product Includes
Product Includes
T20 Pendant with 10m cable attached, 3m adapter cable with bulkhead connector and Documentation
Vision & Inspection Guidance
State-of-the-art industrial computer optimized for vision guided robotics applications: IPC Application Controller
- Built-in vision processor with 128GB SSD, optimized to process high resolution, high frame rate images, with ACE 4.X
- Unique simplified thermal design to maximize uptime
- GigE PoE and USB 3.0 ports for increased connectivity and fast data transmission
- Supports up to 8 cameras simultaneously
- Compatible with Omron UPS S8BA Series
- Compact design to minimize panel space, allowing 2 mounting orientations
Videos
-
Omron PackXpert: complete packaging solution
A complete single source integrated solution: robot, vision, motion, design & control. Manage your packaging line on your own with an intuitive, graphical interface. PackXpert Solution brings together our complete line of robotic automation products into a single, fully integrated packaging system. From design to implementation to product changeovers, with PackXpert, you’ll save time, lower costs and reduce the complexity of your packaging line.
01:21
Omron PackXpert: complete packaging solution
A complete single source integrated solution: robot, vision, motion, design & control. Manage your packaging line on your own with an intuitive, graphical interface. PackXpert Solution brings together our complete line of robotic automation products into a single, fully integrated packaging system. From design to implementation to product changeovers, with PackXpert, you’ll save time, lower costs and reduce the complexity of your packaging line.We've got a nearly-infinite combination to fit any production scenes.
Interested?
Request
Contact us
Contact Our Experts i4H
Thank you for submitting your request. We will come back to you as soon as possible.
We are experiencing technical difficulties. Your form submission has not been successful. Please accept our apologies and try again later. Details: [details]
DownloadRequest
Request
Request quotation
Request quotation
Quotation for i4H
By completing this form you can request a quotation. Your personal details will be handled confidentially.
Thank you for requesting a quotation. We will provide you with the required information as soon as possible.
We are experiencing technical difficulties. Your form submission has not been successful. Please accept our apologies and try again later. Details: [details]
DownloadRequest quotation
Request quotation
Related Products
-
For applications requiring high-speed processing for machine control, safety, reliability and maintainability.
-
New i4L robot for precision machining, assembly and material handling
-
Parallel robot ideal for use in the food and beverage, pharmaceutical, and healthcare industries
-
Four-axis parallel robot achieves high speed and high precision
Downloads
_getting_started_guide_en.jpg)
_users_manual_en.jpg)
