E32 Robot application

E32 Robot application

Robot application fiber sensor heads

For applications on frequently or fast moving parts, the robot fibers reduce the risk of fiber breakage with a guaranteed operational life of more than 1 million bending cycles.

  • Free moving multicore fibers for > 1 mio bending cycles
  • Square shapes for easy surface installation
  • Cylindrical sizes from dia 1.5 mm to M6

Specifications & ordering info

Ordering information

Sensor type

Size

Sensing distance (in mm)1

Order code

E3X-HD

E3NX-FA



M4

1350

2000

E32-T11 2M

M3

400

600

E32-T21 2M



dia 3 mm

1350

2000

E32-T12B

dia 2 mm

400

600

E32-T221B

dia 1.5 mm

400

600

E32-T22B



15 × 18 × 3 mm

1350

2000

E32-T15XB 2M



M6

350

520

E32-D11 2M

M4

140

210

E32-D21B 2M

M3

60

90

E32-D21 2M



dia 1.5 mm

60

90

E32-D22B 2M



15 × 10 × 3 mm

350

520

E32-D15XB 2M

Specifications

Item

Square

Cylindrical

E32-D15XB

E32-T15XB

E32-T21

E32-D11

E32-T11

E32-D21

E32-T12B

E32-T22B

E32-D21B

E32-D22B

E32-T221B

Permissible bending radius

R4

Cut to length

Yes

Ambient temperature

-40°C to 70°C

Material

Head

Aluminium

Brass-nickel plated

Stainless steel

Fiber

PMMA

Sheath

PVC coating

Polyethylene coating

PVC coating

Degree of protection

IEC 60529 IP67




1. Sensing distance measured in Standard Mode

1. Sensing distance measured in Standard Mode

Accessories

Accessories

Shape

Type

Comment

Order code



Focal lens

- Extends sensing distance by more than 500%

- For M4 Through beam fibers E32-TC200, E32-ET11R, E32-T11 (fits M2.6 thread)

- 2 pcs per set

E39-F1



Focal lens (side view)

- For M4 through beam fibers E32-TC200, E32-ET11R, E32-T11,
E32-T61-S, E32-T81R-S (fits M2.6 thread)

- Temperature range -40 to 200°C

- 2 pcs per set

E39-F2



Focal lens (variable)

- For precision detection with E32-D32

E39-F3A



Focal lens



- For precision detection with E32-EC41

E39-F3A-5



- For precision detection with E32-EC41

E39-F3B

- For precision detection with M6 coaxial diffuse reflective fibers (e.g. E32-CC200)

E39-F18



Focal lens (side view, variable)

- For precision detection with E32-EC31

E39-EF51



Focal lens (heat resistant)

- Extends sensing distance by more than 500%

- For M4 through beam fibers E32-ET51, E32-T61, E32-T61-S,
E32-T81R, E32-T81R-S (fits M4 thread)

- Temperature range -60 to 350°C

- 2 pcs per set

E39-EF1-37-2

E39-F16



Focal lens (vacuum resistant, heat resistant)

- Fits E32-T51V and E32-T54V (fits M2.6 thread)

- 2 units per set

- Heat resistant up to 120°C

E39-F1V



Fiber cutter

- Included in applicable fiber

E39-F4



Thin fiber attachment

- Amplifier adapter for thin fibers

- Included in applicable fiber (2 sets)

E39-F9



Sleeve bender

- For E32-TC200B(4)

- For E32-TC200F(4)

- For E32-DC200F(4)

E39-F11



Single fiber extension
connector

- Fiber extension connector for 2.2 mm dia standard fibers

- One unit

E39-F10



Dual fiber extension connector

- For fibers with dia 2.2

E39-F13

- For fiber with dia 1.0

E39-F14

- For fibers with dia between 1.0 and 2.2

E39-F15









Protective spiral tube 1

- For M3 diffuse type sensors

- Length 1 m

E39-F32A

- For M3 through beam type sensors

- Length 1 m

E39-F32B

- For M4 through beam type sensors

- Length 1 m

E39-F32C

- For M6 diffuse type sensors

- Length 1 m

E39-F32D







Fiber on roll 2

- Dia 2.2 mm

- Standard monocore, 10 mm bending radius

- -40 to 80°C

E32-E01 100M

- Dia 1.1 mm

- Standard monocore, 15 mm bending radius

- -40 to 80°C

E32-E02 100M

- Dia 2.2 mm

- High flex multicore, 1 mm bending radius

- -40 to 80°C

E32-E01R 100M

- Dia 1.1 mm

- High flex multicore, 1 mm bending radius

- -40 to 80°C

E32-E02R 100M

- Dia 2.2 mm

- High temperature monocore, 20 mm bending radius

- -60 to 150°C

E32-E05 100M


1. Protective spiral tubes with 0.5 m length are available. Add '5' to order code ... e.g. E39-F32A5

2. Fiber length 100 m on a roll - cut to length

1. Protective spiral tubes with 0.5 m length are available. Add '5' to order code ... e.g. E39-F32A5

2. Fiber length 100 m on a roll - cut to length

How can we help you?

Want to know more about OMRON Industrial robots and robotics?

Request
Contact us

Contact me E32 Robot application

s32 robot application prod

Please, complete all the fields marked with *. Your personal details will be handled confidentially.

Text error notification

Text error notification

Text error notification

Text error notification

Country error notification

Details

Text area error notification

Checkbox error notification

Checkbox error notification

Thank you for submitting your request. We will come back to you as soon as possible.

We are experiencing technical difficulties. Your form submission has not been successful. Please accept our apologies and try again later. Details: [details]

Download
Request
Request
Request quotation
Request quotation

Quotation for E32 Robot application

By completing this form, you can request a quotation. Please note that only a company email address is accepted.

s32 robot application prod

Please, complete all the fields marked with *. Your personal details will be handled confidentially.

Text error notification

Text error notification

Text error notification

Text error notification

Country error notification

Select notification error

Select notification error

Text area error notification

Checkbox error notification

Checkbox error notification

Thank you for requesting a quotation. We will provide you with the required information as soon as possible.

We are experiencing technical difficulties. Your form submission has not been successful. Please accept our apologies and try again later. Details: [details]

Download
Request quotation
Request quotation

Features

Tested durability

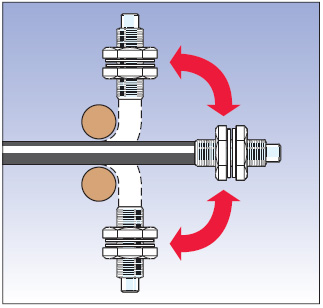

tested one million bends 02 prod

Guaranteed more than 1 mio bending operations.

Fiber breakage protection

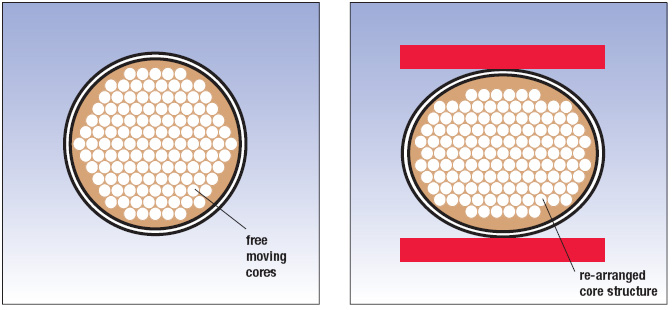

free moving fiber cores 02 prod

Free moving fiber cores prevent fiber breakage and light intensity loss when the fiber is bent.

Technical information

fibers tech-info 01 prod
fibers tech-info 02 prod
