ZP-L Amplifier

ZP-L Amplifier

Laser displacement sensor

Accurate stable measurement with optimal usability

  • High reliable detection for wide range of materials keeping same settings
  • Spot beam and line beam
  • Resolution up to 0.5µm
  • Measurement ranges from 10 to 800 mm
  • Fast measurement cycle up to 125µs
  • Angle characteristics of ±85°
  • Selectable current or voltage analog output
  • High visible OLED display with intuitive navigation
  • Large multicolour indicators for easy visualization from any direction
  • Compact and robust IP67 sensor head
  • Master and slave amplifier units reducing wiring and simplifying installation
  • Ethernet/IP communication unit
  • PC tool for quick configuration and testing without stopping the equipment

Specifications & ordering info

Product Usage Output type Cable length Connection method Features Functions Setting method Description
Laser displacement sensor, amplifier unit, master unit, NPN output, analog output
Laser displacement sensor, amplifier unit, master unit, NPN output, without analog output
Laser displacement sensor, amplifier unit, master unit, PNP output, analog output
Laser displacement sensor, amplifier unit, master unit, PNP output, without analog output
Laser displacement sensor, amplifier unit, slave unit, NPN output, without analog output
Laser displacement sensor, amplifier unit, slave unit, PNP output, without analog output
Laser displacement sensor, amplifier unit, slave unit, without analog output
No results found. Please expand your filter selection.
Reset all filters
Compare products Show more products

Need assistance?

We’re here to help! Reach out, and our specialists will assist you in finding the best solution for your business.

Get professional advice
Ask Our Experts

Contact Our Experts ZP-L Amplifier

zp-l 800x800 prod

Please, complete all the fields marked with *. Your personal details will be handled confidentially.

Text error notification

Text error notification

Text error notification

Text error notification

Country error notification

Details

Text area error notification

Checkbox error notification

Checkbox error notification

Thank you for submitting your request. We will come back to you as soon as possible.

We are experiencing technical difficulties. Your form submission has not been successful. Please accept our apologies and try again later. Details: [details]

Download
Get professional advice
Get professional advice
Request quotation
Request quotation

Quotation for ZP-L Amplifier

By completing this form you can request a quotation. Your personal details will be handled confidentially.

zp-l 800x800 prod

Personal details

ZP-L Amplifier

Text error notification

Text error notification

Text error notification

Text error notification

Text error notification

Text error notification

Text error notification

Text error notification

Text error notification

Country error notification

Quote details

Select notification error

Numeric error notification

Select notification error

Text area error notification

Checkbox error notification

Checkbox error notification

Thank you for requesting a quotation. We will provide you with the required information as soon as possible.

We are experiencing technical difficulties. Your form submission has not been successful. Please accept our apologies and try again later. Details: [details]

Download
Request quotation
Request quotation

Features

Premium detection stability and optimal usability

ZP-L Series products are equipped with a carefully designed user interface, as well as detection accuracy. They’re packed with creative features that allow engineers to cut back on time and effort unknowingly spent when working with displacement sensors.

Intuitive user interface requiring no manuals

ZP-L amplifier units are equipped with OLED displays providing clear visualization, which allows easy-to-understand menu displays that saves the time of searching through manuals.
The configuration screen is designed to prevent users from losing track of where they are in their configuration process. Its layout works in coordination with button operation, allows for intuitive operation.

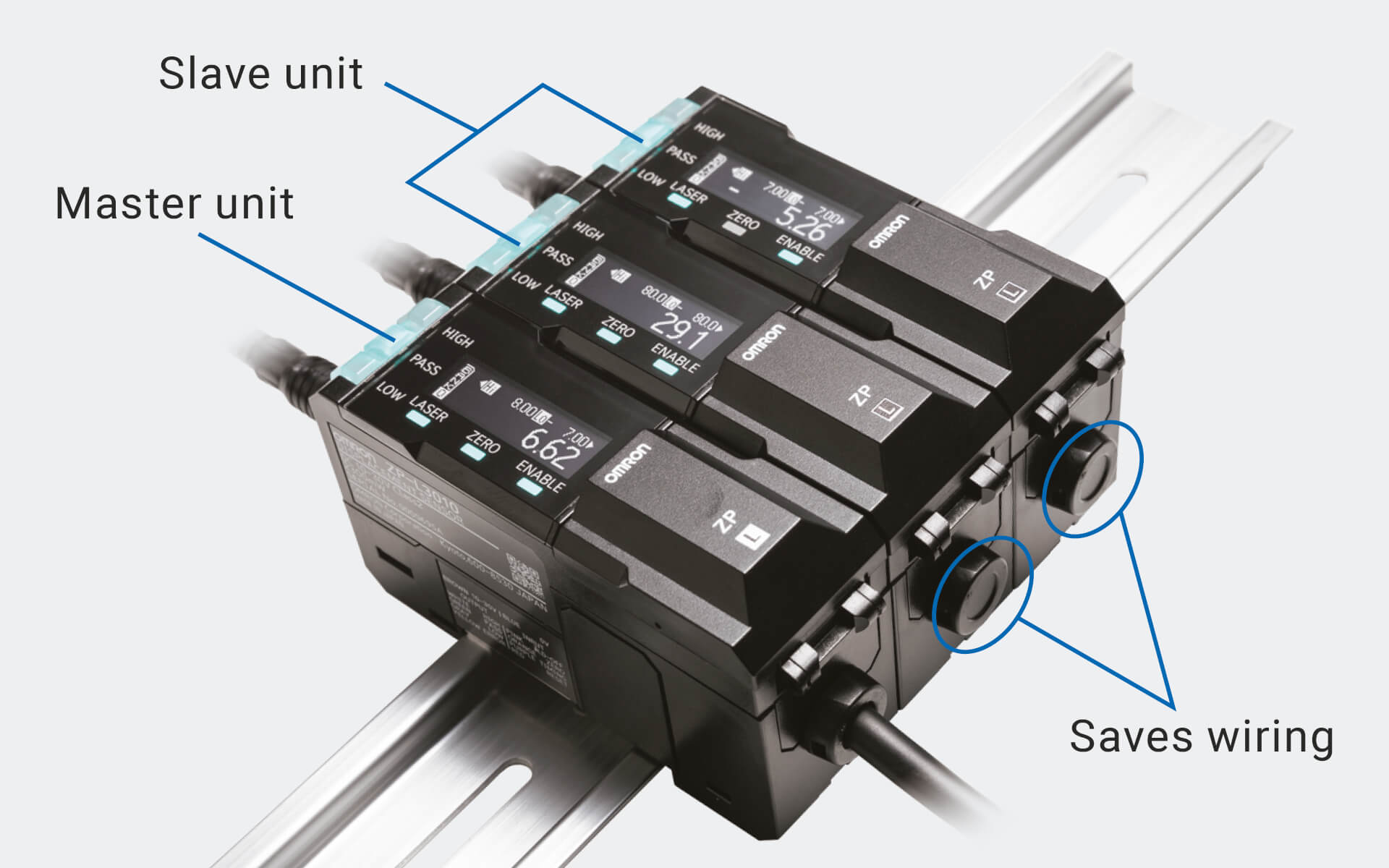

Slave amplifier units that reduce wiring

Slave amplifier units reduce wiring. Power can be supplied from the master unit, eliminating power wired for slaves. When using communication units, slave without cables can be used.
