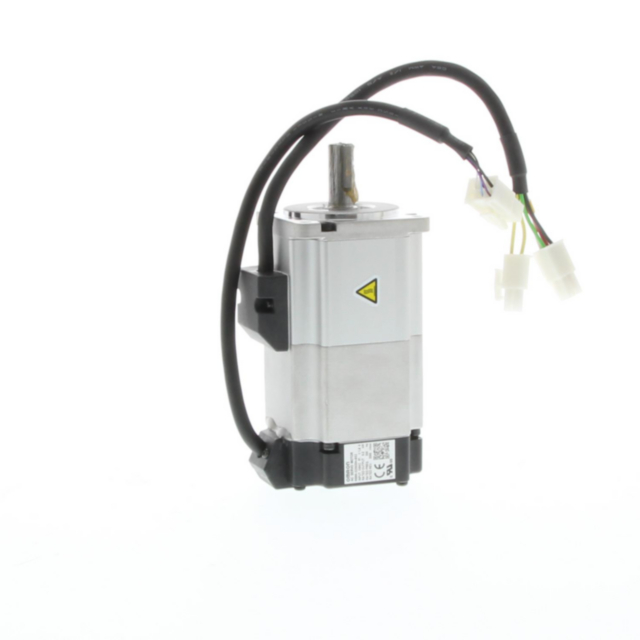

R88M-G40030H-BS2
G-Series/SmartStep 2 AC servo motor (cylinder type), 400 W, 200 VAC, 3000 rpm, 1.3 Nm, with brake
The production of this product is planned to end on 2025-03-31.
For more information regarding the discontinuation of this product, please download the notice.
Specifications
| Servo control method | Analog, MECHATROLINK II, Pulse train |
| Drive supply voltage | 230 V single phase |
| Rated output | 0.4 kW |
| Rated speed | 3000 r/min |
| Rated torque | 1.3 Nm |
| Peak torque | 3.67 Nm |
| Encoder type | Incremental |
| Encoder resolution | 13 Bit |
| Motor with brake | |
| Motor with oil seal | |
| Flange size square (LC) | 60 mm |
| Shaft diameter | 14 mm |
| Shaft with key | |
| Shaft with tap | |
| Product Weight (unpacked) | 1700 g |
Fits to
-
SmartStep 2 servo drive, pulse input type, 400 W, 1~ 200 VAC
-
G-Series servo drive, 1~ 200 VAC, MECHATROLINK II integrated, 400 W
-
G-Series servo drive, 1~ 200 VAC, Analog/Pulse input type, 400 W
