LD-250

  • LD-series Mobile Robot Datasheet
  • Thank you for downloading the LD-series Mobile Robot Datasheet

    Download again

    Did you know that 4 out of 5 distributors buy this product in a bundle?

    There are many variations of passages of Lorem Ipsum available, but the majority have suffered alteration in some form, by injected humour, or randomised words which don't look even slightly believable.

    Read more
Features

LD-250: The strongest member of the LD family

OMRON introduces the LD250, the latest automated mobile robot with a payload capacity of 250 kg. The LD-250 is based on the same tested-and-proven technology used in the industry-leading LD-90. It allows customers to load larger and heavier payloads, making fewer trips with heavier batches, ultimately increasing return on investment. You can do more with less equipment.

ld-250 right prod

  • 250 kg payload capacity
  • Tougher metal skins endure the toughest jobs in industrial environments
  • Perfect for small but heavy loads or lighter but bulky loads

ld-250 side prod

Customers can also integrate the LD-250 and an OMRON TM collaborative robot to build a mobile manipulator (MOMA), and take advantage of accessories that improve performance, such as our high accuracy positioning system (HAPS) and side lasers.

Specifications & ordering info

Ordering information

Mobile robots-LD platform

Apperance Product type Product
name
Maximum
load
Maximum
speed
Robot configuration & accessories Order code
OEM LD-60 60 kg 1.8 m/s Standard -
model
Robot Without Battery 37032-00000
Robot
+ Docking Station

Without Battery

Docking Station: 12477-000

Battery Power Cable (0.45 m): 12676-000L

37032-00002
Robot
+ Starter kit

Without Battery

Docking Station: 12477-000

Battery Power Cable (0.45 m): 12676-000L

Joystick: 13558-000

Top Plate: 12944-000

37032-10004
ESD model -
Electrostatic
Discharge
ESD Robot Without Battery 37032-20000
ESD Robot
+ Docking Station

Without Battery

Docking Station: 12477-000

Battery Power Cable (0.45 m): 12676-000L

37032-20002
ESD Robot
+ Starter kit

Without Battery

Docking Station: 12477-000

Battery Power Cable (0.45 m): 12676-000L

Joystick: 13558-000

Top Plate: 12944-000

37032-20004
LD-90 90 kg 1.35 m/s Standard -
model
Robot Without Battery 37042-00000
Robot
+ Docking Station

Without Battery

Docking Station: 12477-000

Battery Power Cable (0.45 m): 12676-000L

37042-00002
Robot
+ Starter kit

Without Battery

Docking Station: 12477-000

Battery Power Cable (0.45 m): 12676-000L

Joystick: 13558-000

Top Plate: 12944-000

37042-10004
ESD model -
Electrostatic
Discharge
ESD Robot Without Battery 37042-20000
ESD Robot
+ Docking Station

Without Battery

Docking Station: 12477-000

Battery Power Cable (0.45 m): 12676-000L

37042-20002
ESD Robot
+ Starter kit

Without Battery

Docking Station: 12477-000

Battery Power Cable (0.45 m): 12676-000L

Joystick: 13558-000

Top Plate: 12944-000

37042-20004
LD-250 250 kg 1.2 m/s Standard
model
Robot Without battery 37222-00000
Robot
+ Docking Station
Without battery
Docking Station: 12477-000
Battery Power Cable (0.45 m): 12676-000L
37222-00002
Robot
+ Starter kit
Without battery
Docking Station: 12477-000
Battery Power Cable (0.45 m): 12676-000L
Joystick: 13558-000
Top Plate: 20458-002
37222-10004
Cart -
Transporter
LD-105CT 105 kg 1.35 m/s Standard -
model
Cart Transporter Robot

Without Battery

Touchscreen: 13605-000

Side Laser: 13456-000

37142-00010
Cart Transporter Robot
+ Docking Station

Without Battery

Touchscreen: 13605-000

Side Laser: 13456-000

Docking Station: 12477-050

Battery Power Cable (0.45 m): 12676-000L

37142-00012
Cart Transporter Robot
+ Starter kit

Without Battery

Touchscreen: 13605-000

Side Laser: 13456-000

Docking Station: 12477-050

Battery Power Cable (0.45 m): 12676-000L

Acuity Localization: 13700-000

Joystick: 13558-000

Cart: 75020-000

37142-01014
LD-130CT 130 kg 0.9 m/s Cart Transporter Robot

Without Battery

Touchscreen: 13605-000

Side Laser: 13456-000

37162-00010
Cart Transporter Robot
+ Docking Station

Without Battery

Touchscreen: 13605-000

Side Laser: 13456-000

Docking Station: 12477-050

Battery Power Cable (0.45 m): 12676-000L

37162-00012
Cart Transporter Robot
+ Starter kit

Without Battery

Touchscreen: 13605-000

Side Laser: 13456-000

Docking Station: 12477-050

Battery Power Cable (0.45 m): 12676-000L

Acuity Localization: 13700-000

Joystick: 13558-000

Cart: 75020-000

37162-01014
Note:

For existing customer of mobile robots, please contact your OMRON representative to ordering additional mobile robots to ensure proper fleet management.

Fleet Operations Workspace

Appearance Product name Configuration & Attachment Order code
Primary Fleet Operations Workspace
2
To obtain the latest version of the Fleet Operations Workspace (FLOW) Core software, please contact your OMRON representative.

(FLOW) Core License
Entitlement for 1 year renewable Primary FLOW Core license 20271-800
Entitlement for 5 year renewable Primary FLOW Core license 20271-806
Secondary Fleet Operations Workspace
2
To obtain the latest version of the Fleet Operations Workspace (FLOW) Core software, please contact your OMRON representative.

(FLOW) Core License
Entitlement for 1 year renewable Secondary FLOW Core license 20271-802
Entitlement for 5 year renewable Secondary FLOW Core license 20271-807
Primary Fleet Manager EM2100 Appliance with Temporary 120 Day Fleet Operations Workspace Lincense 20271-900
Secondary Fleet Manager 20271-901

Options

Appearance Product name Specification Configuration & Attachment Order code
High Accuracy Positioning System
(HAPS)
Single sensor (for LD-60/90) Sensor × 1, Mounting bracket × 1, Power connector × 1, RS‑232
connector × 1, 25 mm wide magnetic tape (south top side, 50 m roll)
13660-100
Single sensor (for LD-250) 21374-100
Double sensor
(for LD-60/90)
Sensor × 2, Mounting bracket × 2, Power connector × 1, RS‑232
connector × 2, 25 mm wide magnetic tape (south top side, 50 m roll)
13660-000
Double sensor
(for LD-250)
21374-000
Magnetic Tape 25 mm wide magnetic tape (south top side, 50 m roll) 14925-000
Cell Alignment Positioning System
(CAPS)
Software license Software license activated on each AMR individually.
Upload to the AMR via SetNetGo
20271-805
Acuity Localization Camera, Mounting Kit, cables, Leveling kit 13700-000
Touchscreen Touchscreen with bracket,
power supply with bracket,
power cable from core to power supply (33 cm),
power cable from power supply to touchscreen (183 cm),
Ethernet cable between touchscreen and core (153 cm),
gasket between touchscreen and AIV mounting surface,
software package including touchscreen support
13605-000
Side Laser Bundle Laser × 2, Cable × 1 13456-000
Kit Laser × 2, Cable × 1, Mounting Kit × 2,
Metal Cover × 2
13456-100
Call/Door Box WiFi
Wired
Call/Door Box, Cable 13029-802
ESD kit Kit to update the OEM -Standard model to ESD model - Electrostatic Discharge 18452-101

Accessories

Appearance Product name Specification Configuration & Attachment Order code
Battery (for LD-60/90) 18578-000
Battery (for LD-250) 20452-000
Docking Station Docking station,
AC Power cable
12477-000
Extended Wall Mount Docking Station,
AC Power cable,
Extended Wall mount (for Cart Transporter)
12477-050
Joystick Cable length: 0.6 to 3 m 13558-000
Breakout Cable DB44HD Breakout cable
(D-SUB44 pin cable for Digital I/O interface)
14165-000
Top Plate (for LD-60/90) Top cover for OEM Model 12944-000
Top Plate (for LD-250) 20458-002
Cart
2
The cart only applies to the LD-CT models (Cart Transporter).
With casters and braking hardware 75020-000
Battery Power Cable Cable length: 0.45 m 12676-000L

Dimensions

Mobile robots LD-platform

LD-60/90

LD-250

LD-CT (Cart Transporter)

Fleet Manager EM2100

High Accuracy Positioning System

Acuity Localization

Touchscreen

Call/Door Box

Docking Station

Joystick

Cart

Technology

Powerful Fleet Management

The OMRON Fleet Operations Workspace (FLOW) solution provides an intelligent fleet management system that monitors mobile robot locations, traffic flow, and job requests, ensuring your factory operates at peak efficiency. By automating robot tasks, our FLOW Core solution also reduces programming in your manufacturing execution system (MES) or enterprise resource planning (ERP) system.

  • Manage fleets of up to 100 robots in any configuration
  • Displays robot location, status and job queue
  • Prioritizes important jobs
  • Selects fastest routes based on human and robot traffic
  • Identifies blocked paths and creates alternative routes
  • Optimizes job assignments and battery charging

ld-250  fleet manager 311019 6991x a sol

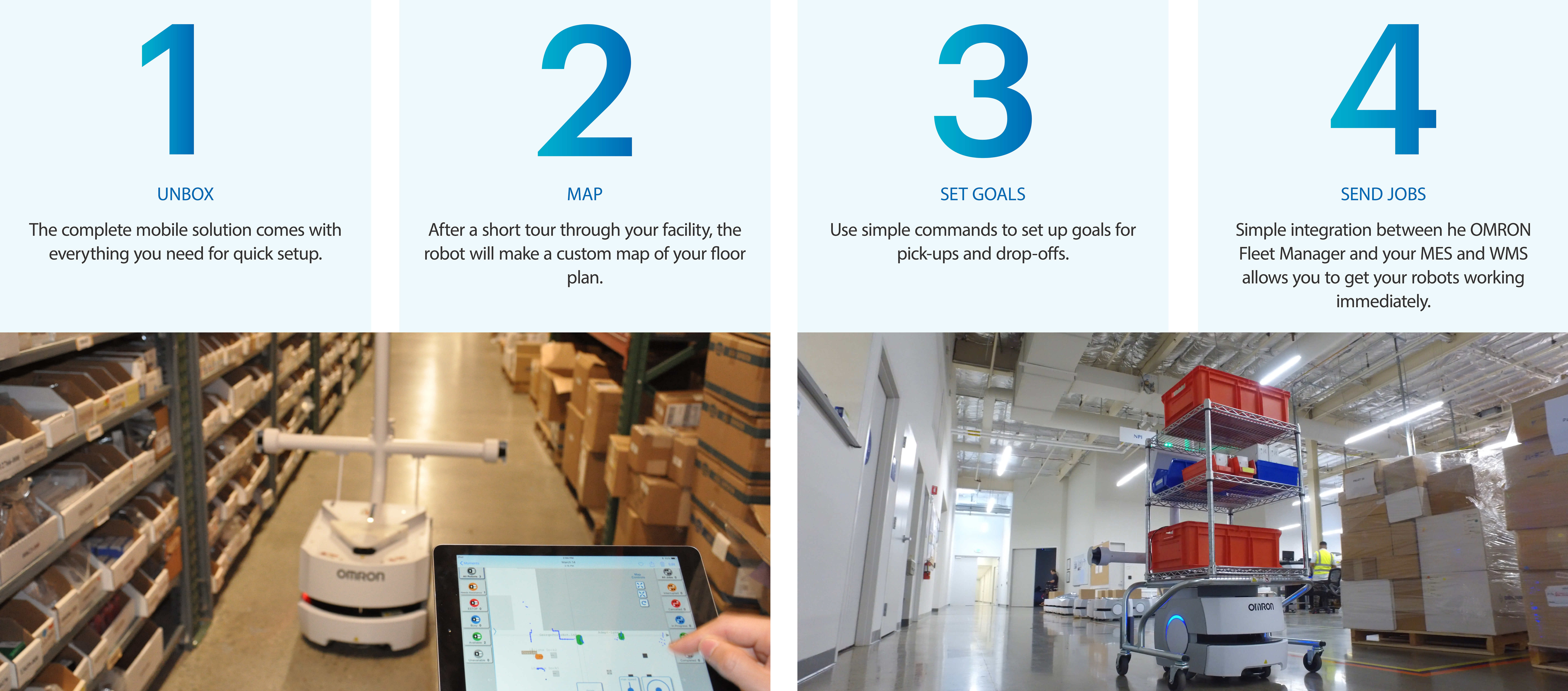

Easy install

OMRON mobile robots are easy to get up and running, requiring no construction such as the installation of magnets, and minimal programming. In addition, our software integrates with your other systems so you can get the solution up and running in minimal time.

  • No construction required
  • Easy integration with MES, ERP, and WMS
  • Enhanced security to comply with IT systems
  • Autonomous navigation doesn’t require preset routes, magnets, or beacons
  • Automatic software updates across fleet while maintaining continuous work flow

ld-250 311019 6991x b sol

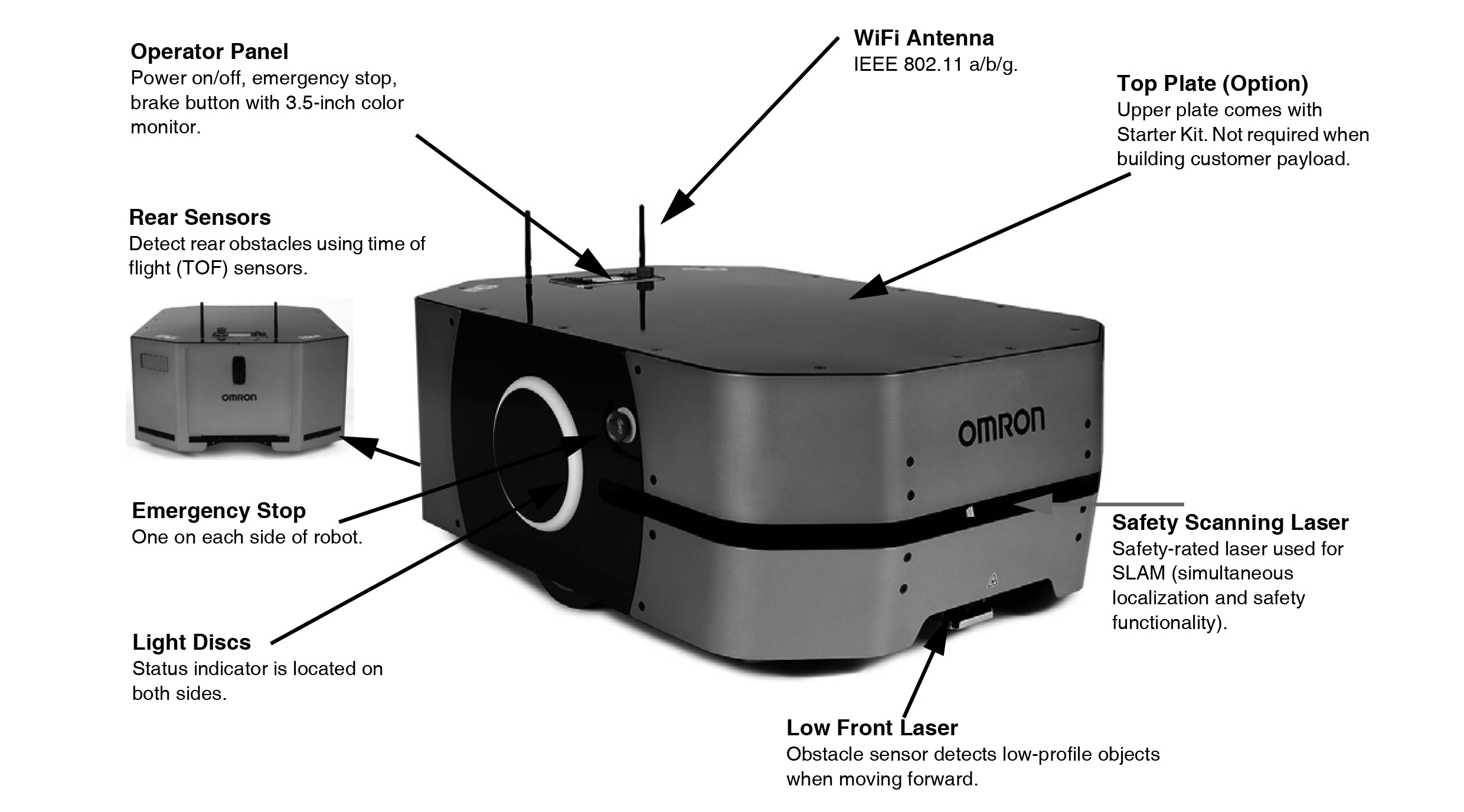

Safe by design

Designed to meet the industry’s latest requirements, our mobile robots interact with people to promote a collaborative, safe working environment. Safety lasers and sonar allow our robots to detect obstacles in their path and prevent collisions.

  • Avoids static and moving obstacles
  • Additional E-stops easily added
  • Complies with ISO EN1525, JIS D6802 and ANSI B56.5 safety standards

ld-250 311019 6991x c sol
Functionality

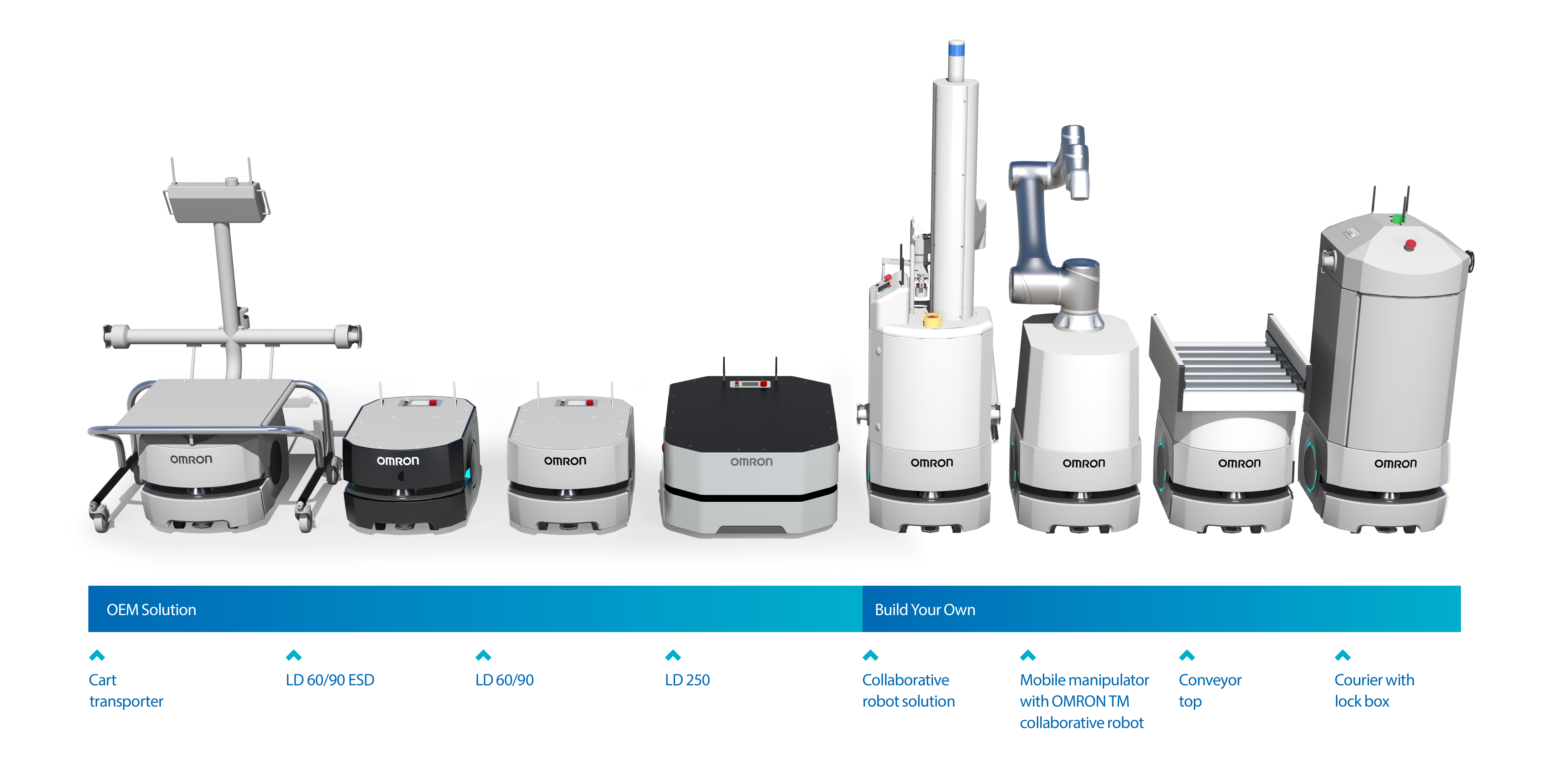

Flexible functionality

OMRON’s mobile solutions are extremely versatile and can be adapted to perform a wide variety of tasks and applications.

  • Grow your business: Modify layouts to optimize production
  • Adapt to changing environments: Assembly stations, clean rooms, order fulfilment, loading docks, stock rooms

ld-250 311019 6991x d sol
Markets

Made for Industry

With the largest install base in the world, OMRON mobile robots are deployed in thousands of applications across multiple industries.

ld-250 automotive 311019 6991x e sol

Automotive

  • Tire Assembly
  • Automotive Electronics
  • Automotive Accessories
  • Assembly and Inspection

ld-250 medical 311019 6991x e sol

Pharma

  • Sterilization Room Transport
  • Laboratory Sample Transport

ld-250  Foof and Beverage 311019 6991x e sol

Food & Consumer

  • Stockroom Transport
  • Transport Goods to Assembly and Sorting Stations

ld-250 digital  311019 6991x e sol

Digital

  • Semiconductor Wafer Fabrication
  • Semiconductor Packaging and Test
  • Mobile Device Manufacturing
  • Data Center Environmental Surveillance
